Co2 Laser engraving & cutting machine

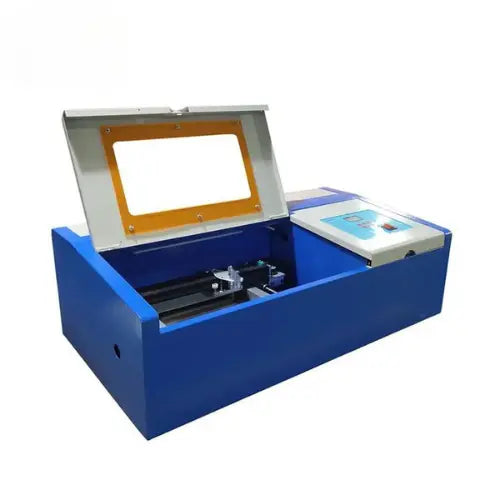

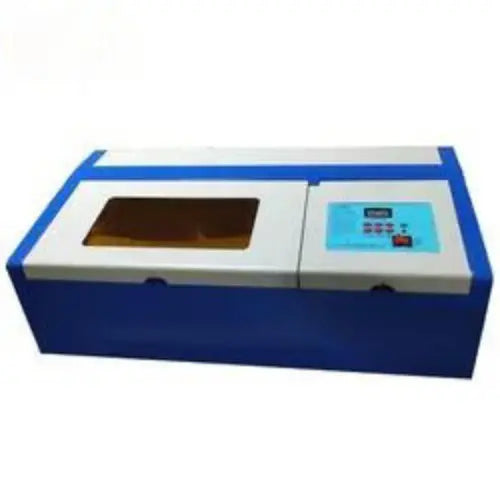

K3020 Co2 Laser engraving & cutting machine

The K3020 Co2 Laser Engraving & Cutting Machine provides precise and efficient laser engraving capabilities for various materials. Utilizing an 40W CO2 laser tube, the machine is able to engrave and cut items with accuracy up to 0.1mm. The powerful air pump can reduce the heat and smoke during the engraving process, making it suitable for a variety of material..

Specifications:

Model: K3020

Laser type:  Hermetic CO2 glass tube

Laser power:  40W/50W

Support software:  CorelLASER/ LaserDRW/ CorelDRAW

Maximum work area:  300*200mm

Working speed:  0-500mm/ s (Adjustable)

Cutting depth:  0-5mm (According to material)

Location precision:  0.01mm

Power supply:  AC220V/ 110V   50/60HZ

 Min Carving Time:  Words2*2mm/Number1*1mm

Work environment:  5-40 C   5-95%  (RH)

Cooling way:  water cooling

Machine size:  800*500*270  (mm)

N.W. : 25KGS

G.W. :  40KGS

Materials:  Paper, wood, Acrylic, bamboo, leather, rubber and non-metallic items
